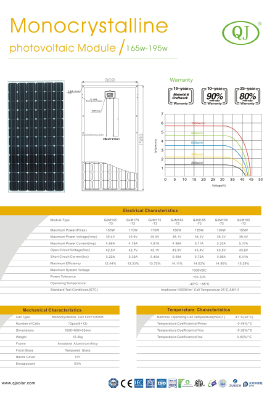

Product Details
- Size: 1956*992*40
- Place of Origin: Tianyuan Town, Cixi, Zhejiang 315325, China
- Brand Name: monocrystalline
- Model Number: monocrystalline165W-195W
- Weight: 21.000 kg
Maximum Power(Pmax) 165W--195W
Maximum Power Voltage(Vmp) 35.4V--36.4V
Maximum Power Current(Imp) 4.66A--5.37A
Open Circuit Voltage(Voc) 42.5V--43.6V
Short Circuit Current(Isc) 5.22A--6.01A
Maximum Efficiency 12.94%--15.29%
Maximum Power Voltage(Vmp) 35.4V--36.4V
Maximum Power Current(Imp) 4.66A--5.37A
Open Circuit Voltage(Voc) 42.5V--43.6V
Short Circuit Current(Isc) 5.22A--6.01A
Maximum Efficiency 12.94%--15.29%
Maximum System Voltage 1000VDC
Power Tolerance +(0-3)%
Operating Temperature -40 ℃ ～ +85 ℃
Standard Test Conditions(STC) Irradiance 1000W/㎡,Cell Temperature 25℃,AM1.5
- Size: 1956*992*40
- Place of Origin: Tianyuan Town, Cixi, Zhejiang 315325, China
- Brand Name: monocrystalline
- Model Number: monocrystalline165W-195W
- Weight: 21.000 kg
